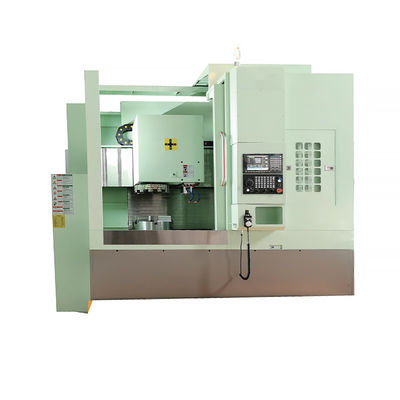

15kW Spindle Power High Precision CNC Lathe Machine 600kg Workpiece Capacity
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

15kW Spindle Power High Precision CNC Lathe Machine 600kg Workpiece Capacity

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union,MoneyGram,T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

15kW cnc lathe machine

,

High Precision cnc lathe machine

,

600kg cnc lathe service

Product Description

High Precision LV600M CNC Lathe Machine - 15kW Spindle Power, 600kg Workpiece Capacity



 Technical Parameters:
Item LV600M
Processing capacity
Maximum turning diameter on bed body ∅650mm
Maximum turning diameter ∅600mm
Maximum tuming outer circle length 550mm
Maximum turninginner hole depth 275mm
Maximum workpiece weight 600kg
Spindle
Nose end of spindle A2-8
Spindie chuck specifications   15"
Maximum spindle speed 0～1500
Milling head spindle BT40
Maximum speed of the millingspindle 8000RMP
Feed shaft
X/Z axis travel 1000/600mm
X/Z axis fast displacement 24/24m/min
X/Z axis screw specifications 4010/4010
X/Z rail specifications 45pin roller
Number ofX axis rail roots 3
Number of Z axis rail roots 2
Positioning accuracy (JlS) ±0.003/300
Repeated positioning accuracy (JlS) ±0.003
Motor
Spindle motor power 15kw
X/Z axis torque 8Nm/28Nm
Cooling motor power 0.49kw
Hydraulic station motor power 4HP
Tool change system
Knife Change Type servo turret
Number ofknifepositions 12T
Standard knife cylinder size 25x25mm
Standard boring bar diameter φ40mm
Mill head cutter library specifications BT40robot arm type
Number of tool libraries 24T
General specifications
Power supply capacity 20KVA
Exterior dimensions (L X W X H) 3.2*2.1*28M
Net weight (approx) 8T

15kW Spindle Power High Precision CNC Lathe Machine 600kg Workpiece Capacity 0

15kW Spindle Power High Precision CNC Lathe Machine 600kg Workpiece Capacity 1
