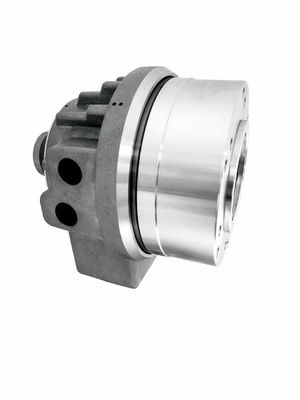

Cnc Tool Holder High Speed Through-hole Rotary Oil Cylinder Hydraulic Actuator for Lathe Machine

CNC Tool Holder High Speed Through Hole Rotary Oil Cylinder Hydraulic Actuator 0

spec.	A1	B1	C	C1	D	D1	E(h7)	F	F1	F2	G	G1
TK536	9	108.5	140	25	115	125	100	65	6-M10X1.5P	6-M8X1.25P	48	108
TK646	10	116.5	162	30	130	140	120	80	6-M10X1.5P	6-M8X1.25P	65	112
TK852	10	126.5	188	30	170	170	130	85	12-M10X1.5P	6-M8X1.25P	70	128.5
TK1075	12	143	214	35	190	195	160	110	12-M10X1.5P	6-M10X1.5P	95	122.5
spec.	H	J	J1	K	K1	L1	M	N	P	P1	Q	Q1	R1
TK536	M42X1.5P	36	62.5	32	50	15	38	64	73	4	80	4-M5X0.8P(PCDφ88)	8
TK646	M55X2P	46	72.5	38	50	15	50	74.5	83	4	90	4-M5X0.8P(PCDφ98)	7.5
TK852	M60X2P	52	83.5	36	50	15	55	85	96	4	100	4-M6X1P(PCDφ110)	6.5
TK1075	M85X2P	75	98.5	39	50	17	80	110	121	4	128	4-M6X1P(PCDφ155)	8.5
spec.	S	S1	T	T1	U	U1	Vmax	Vmin	W1	Wmin	Wmax	X1	Z
TK536	103	PT1/4	110	5	154	142	10	-5	M44X1.5P	28	43	41.8	5
TK646	121	PT3/8	122	5	165	164	10.5	-4.5	M52X1.5P	28.5	49.5	50	5
TK852	137	PT3/8	132	6	178.5	190	17	-5	M58X1.5P	25.5	47.5	56	5
TK1075	165	PT1/2	160	5	185	216	20	-5	M84X2.0P	50	25	81	5
Performance parameters
spec.	Press side/cm2	Pull side/cm2	Stroke/mm	Max.speed/min(r.p.m)	Maximum working pressure/MPa (kgf/cm2)			GD2 kg.m2	Total volume of oil drainage(lit./min.)			Weight/kg
TK536	70	68	15	8000	4.0(40)			0.05	2.5			7.4
TK646	100	88	15	7000				0.06	3			9.7
TK852	135.3	125	22	6500				0.11	3.9			11.8
TK1075	196	183	25	4700				0.4	4.2			25.8
