TSR centre frame

SC centre frame

TSR frame centre

Product Description

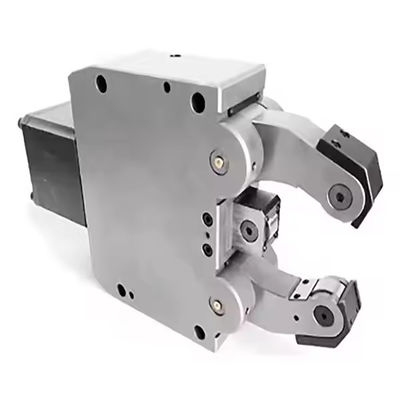

SC TSR Standard Centre Frame Basic Premium Line Grinding Self Centering Steady Rests 0

specifications and models\|TSR4-61A \|TSR8-101A				1SR12- 152A	1SR20- 165A	1SR50- 200A	ISR30- 245A	1SR45- 310A	1SR85- 350A	1SR120- 460A	1SR185- 545A
clamp range with iron filings protection U1		4	8	12	20	50	30	45	85	120	185
U2		61	101	152	165	200	245	310	350	460	545
maximum opening U3		61.7	101.96	152.48	166.31	201.07	245.83	311.09	351	459.78	546
A		186	284	390	399	426	562.3	683.3	710.3	878	1030.5
B		126	200	267.8	280	307	399.5	495	522	657	748.5
C		45	70	114	108	122	154.5	187	207	266	312.5
D		71	110	135	155	165	220	275	275	355	390
E		117	198	258	258	253	335	400	380	480	550
F		140	222	290	300	280	380	440	440	535	600
G		63	75	95	95	95	110	145	145	166	196
arm thickness K		28	35	45	45	45	60	75	75	75	82
roller height L		15	19	25	25	25	25	29	29	29	32
roller diameter M		24	35	47	47	47	52	62	62	80	100
0		60	84	119	119	119	162.8	188.3	188.3	221	282
P1		30	34	58.5	58.5	58.5	65	67	67	95	97
P2		35	51	71.5	71.5	71.5	80	77	77	95	97
R		46.9	75	111	115.3	133.6	160.6	198.7	220.8	283.7	340.5
bolt aperture S		11	14	18	18	18	23	23	23	27	27
V		36	56	84	90	107	129.5	162	182	236	282.5
W1		5.2	8.66	17.32	17.32	17.32	17.32	17.32	17.32	27.47	34.64
a		30	30	30	30	30	30	30	30	20	30
X1		11	10	12.75	12.75	12.75	14	15.25	15.25	22.75	28.5
X2		36	43	48	48	57.75	74	90.25	90.25	83	110.5
X3		/	/	7.6	7.6	7.6	6.5	7.1	7.1	14	25
Y		27	40	75	75	65	86.3	85	65	110	72
piston area cm2		7.00	19.63	50.00	50.00	50.00	63.60	78.50	78.50	122.60	176.63
operating oil pressure max/min	bar	6/60	8/60	8/65	8/65	8/65	8/70	8/80	8/80	8/70	8/70
maximun clamping force of roller	daN	165	450	1000	1000	1000	1500	2000	2000	2900	4153.84
centering accuracy mm		0.01	0.01	0.02	0.02	0.02	0.03	0.04	0.04	0.04	0.06
repeated positioning mm accuracy		0.005	0.005	0.007	0.007	0.007	0.007	0.01	0.01	0.01	0.02
maximum circular linear speed of m/min the roller		935	990	797.5	797.5	797.5	786.5	770	770	753.5	690
weight kg		8.60	24.50	50.00	50.00	50.00	104.00	168.00	174.00	333.00	504.00
