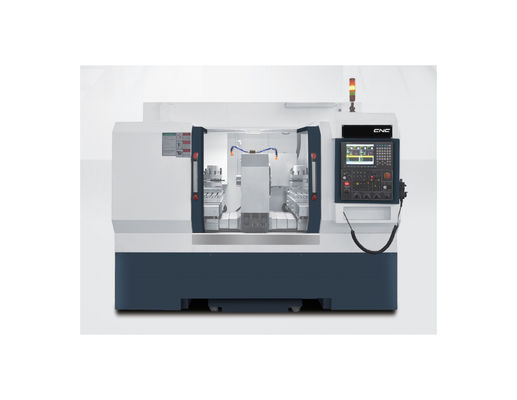

FCW72P Dual-Spindle Flat-Bed Machining Powerhouse With ≤0.02mm Coaxiality

FCW72P Dual - Spindle Flat - Bed Machining Machine

Product Introduction

Product Features

Clamping and Speed

• Clamping Range: With a maximum clamping range of ∅72mm and a minimum clamping length of 90mm, it can handle a wide range of workpiece sizes. The main spindle clamp body offers an accuracy of 0.005mm, and the repeated clamping precision of workpieces is ≤0.03mm.
• Speed and Power: The machine runs at a maximum speed of 2000 r/min, powered by a 7.5 - kW main motor, ensuring efficient operation.

Working Accuracy

• Coaxiality and Length Error: It maintains high precision during machining. The coaxiality of both ends during processing is ≤0.02mm, and the total machining length error is within ±0.03mm.

Structural Design

• Bed and Tooling: The flat - bed design provides stability, while the dual - spindle setup boosts productivity.

Product Applications

Automotive Parts Manufacturing

• It’s suitable for machining automotive components like engine shafts and transmission gears, meeting the industry’s strict precision requirements.

Machinery Production

• In the production of general machinery, the FCW72P can create parts such as pump shafts and bearing housings.

Aerospace Sub - Component Fabrication

• For manufacturing smaller aerospace components, its high precision helps ensure the safety and performance of aerospace equipment.
