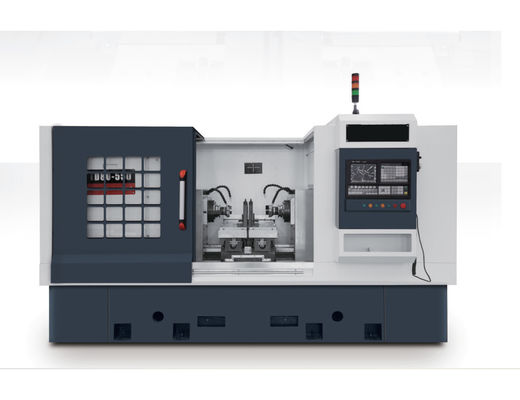

Double Spindle Mill Drill Machine TD60 High Precision Increased Output

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

Double Spindle mill drill machine

,

High Precision mill drill machine

,

TD60 mill drill lathe machine

Product Description

Double-Spindle Milling & Drilling Machine TD60, High Precision Increased Output



Specifications andTechnicalParameters
ltem unit TD60
Processing dia range mm ∅10~∅60
Processing lenght range mm 150~450
Milling depth MAX mm 3
Center drill dia range mm A2~B10
Milling spinde speed r/min 300~800
Drilling spinde speed r/min 600~1600
Power of the main motor KW 3
Overall dimensions(LxWxH) mm 2.2x1.3x1.6
Machine weight Kg 3100
Working Accuracy
Milling length consistency mm 0.05
Center hole depth consistency mm ≤0.03
Face runout of the Center hole mm ≤0.03
Center hole surface roughness Ra 1.6
 Optional function parameters
Turning dia MAX mm ∅60
Effective length of the package mm 20~30

Double Spindle Mill Drill Machine TD60 High Precision Increased Output 0

Double Spindle Mill Drill Machine TD60 High Precision Increased Output 1

Double Spindle Mill Drill Machine TD60 High Precision Increased Output 2
