TD80: High - Performance Dual - Spindle Flat - Bed CNC Milling And Drilling Center

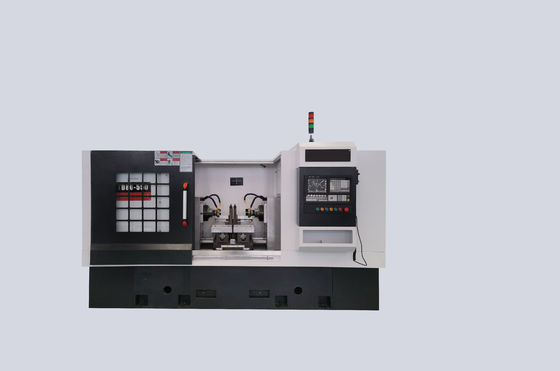

TD80 Dual - Spindle Flat - Bed Milling and Drilling Machine Product Introduction

Product Introduction

Product Features

1. Expansive Processing Range
   • It can handle workpieces with a processing diameter ranging from ∅10 to ∅80mm, making it suitable for both small - scale and relatively larger components. The processing length range of 150 - 550mm further broadens its applicability. The optional maximum turning diameter of ∅80mm and an effective package length of 20 - 30mm add extra versatility.
2. Powerful Machining Capabilities
   • With a milling depth of up to 4mm, the TD80 can perform substantial milling tasks. The milling spindle speed varies from 300 to 800 r/min, while the drilling spindle speed ranges from 600 to 1600 r/min. This wide range of speeds allows for optimal machining of different materials, whether it's soft metals or harder alloys.
   • The center drill diameter range from A2 - B10 enables accurate center drilling operations. A 4 - KW main motor provides the necessary power to ensure smooth and efficient machining, driving the spindles and cutting tools with sufficient force.
3. Dual - Spindle Advantage
   • The dual - spindle design significantly enhances productivity. It allows for simultaneous machining operations on two workpieces or different features of a single workpiece, reducing overall production time. For example, one spindle can be used for milling while the other is engaged in drilling, streamlining the manufacturing process.
4. High Precision
   • The TD80 offers excellent working accuracy. The milling length consistency is maintained within 0.05mm, ensuring uniform milling results. The center hole depth consistency is ≤0.03mm, and the face runout of the center hole is ≤0.03mm. The center hole surface roughness of Ra 1.6 meets high - quality standards, making it suitable for applications where precision is crucial.
5. Robust Flat - Bed Design
   • With overall dimensions of 2.6x1.4x1.65mm and a machine weight of 3800 Kg, the flat - bed design provides stability during operation. The flat - bed structure allows for easy loading and unloading of workpieces and also contributes to the machine's durability, withstanding the rigors of continuous machining.

Product Uses

1. Automotive Parts Manufacturing
   • In the automotive industry, the TD80 can be used to produce a variety of parts. It can machine engine components such as camshafts and crankshafts, where the dual - spindle feature can speed up the production process. Transmission gears and shafts can also be precisely milled and drilled, ensuring high - quality parts that meet the strict tolerances required in automotive manufacturing.
2. Aerospace Component Production
   • For aerospace applications, the TD80's high precision is invaluable. It can be used to create parts like aircraft engine brackets and structural components. The ability to handle different diameters and lengths, combined with the dual - spindle operation for increased efficiency, makes it suitable for producing the complex and high - tolerance parts demanded by the aerospace industry.
3. General Machinery and Toolmaking
   • In general machinery manufacturing, the TD80 can manufacture parts for pumps, valves, and various mechanical assemblies. In toolmaking, it can be used to create precision cutting tools, molds, and dies. The machine's versatility in milling, drilling, and turning (with the optional feature) makes it a valuable asset in these industries, where accurate and efficient production is essential.
