CNC Turning Center With Two 4 Station Turrets High Precision Clamping

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

High Precision Clamping Flat Bed CNC Lathe Machine

,

3000r/min Flat Bed CNC Lathe Machine

,

3000r/min cnc turning center

Product Description

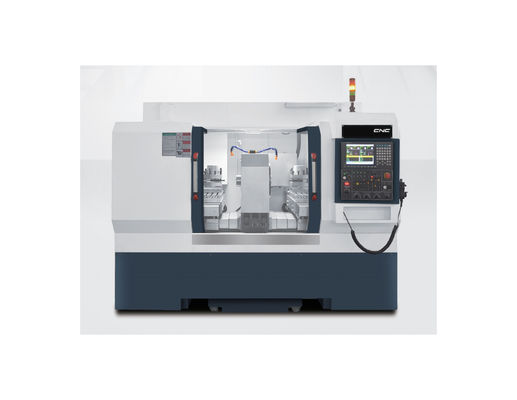

Compact FCW32P CNC Turning Center with Two 4-Station Turrets and High-Precision Clamping



Specifications and Technical Parameters
  单位unit FCW32P
Maximum clamping range mm ∅32
Minimum clamping length m m 50
Main spindle clamp body accuracy mm 0.005
Precision of repeated clamping of
workpieces		 mm ≤0.03
Maximum speed r/min 3000
Main motor power kW 7.5
Overall dimensions (length x width x
High)		 mm 2200x1700x1800
Machine weight KG 3500
working accuracy
Processing the coaxiality of both ends mm ≤0.02
Total machining length error mm ±0.03

CNC Turning Center With Two 4 Station Turrets High Precision Clamping 0
