FDX100 Dual - Spindle Inclined - Bed Milling & Drilling Master For Long - Range Workpieces

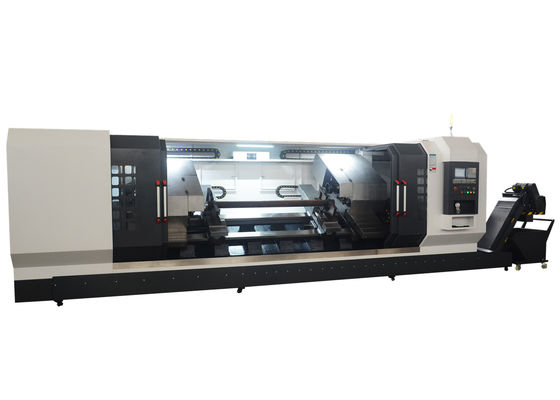

FDX100 Dual - Spindle Inclined - Bed Milling and Drilling Machine

1. Product Introduction

2. Product Features

Processing Flexibility

• Diameter & Length: It can process workpieces with diameters from ∅20 to ∅100mm. The optional turning feature supports a maximum diameter of ∅100mm. With a length range of 300 - 3000mm, it’s suitable for long - shaft workpieces. The effective package length is 20 - 30mm.
• Milling & Drilling: Maximum milling depth is 5mm. The milling spindle speed ranges from 300 - 800 r/min, while the drilling spindle speed varies from 600 - 1600 r/min. Center drill diameter ranges from A2 - B10, and it supports rigid tapping up to M24.

Power and Precision

• Power: Equipped with a 5.5 - KW main motor, it delivers stable performance.
• Precision: Milling length consistency is ±0.1mm. Center hole depth consistency is ≤0.05mm, face runout within <0.05/∅100, and surface roughness Ra 3.2.

Structural Advantage

• Inclined - Bed Design: This design ensures excellent chip evacuation, and dual - spindle configuration enables simultaneous operations, boosting productivity.

3. Product Applications

Energy Sector

• For manufacturing long shafts and components used in turbines. Its long - length processing ability and precision meet the high standards of the energy industry.

Machinery Manufacturing

• Ideal for producing large - scale mechanical parts like axles for heavy - duty equipment. The dual - spindle design shortens production time.

Automotive Ancillary Production

• Suitable for machining long components such as vehicle drive shafts, maintaining the required precision and quality.
