FCW200P: Dual - Spindle Flat - Bed Heavy - Duty Machining Titan for ∅200

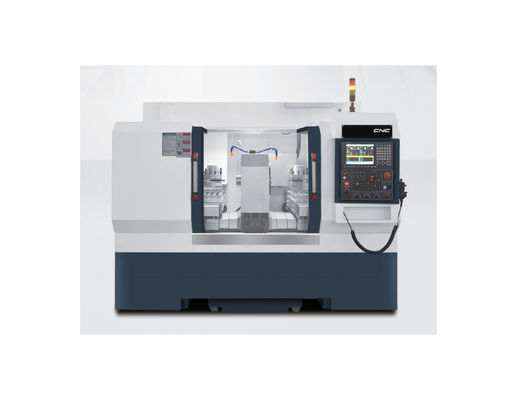

FCW200P Dual - Spindle Flat - Bed Machining Machine

1. Product Introduction

2. Product Features

Processing Capacity

• Clamping: With a maximum clamping range of ∅200mm and a minimum clamping length of 120mm, the FCW200P can accommodate various workpiece sizes. The main spindle clamp body features an accuracy of 0.005mm, and workpiece repeated clamping precision is ≤0.03mm.
• Speed and Power: The machine runs at a maximum speed of 1000 r/min, powered by a 7.5 - kW main motor.

Precision

• Coaxiality: The coaxiality of both ends during processing is ≤0.02mm.
• Length Error: Total machining length error is maintained within ±0.03mm.

Structure

• Flat - Bed Design: The flat - bed structure ensures stability, and the dual - spindle configuration doubles productivity.

3. Product Applications

Heavy - Machinery Manufacturing

• In the production of heavy - machinery parts like large - diameter shafts and gears, the FCW200P’s large clamping range and high precision prove invaluable.

Oil and Gas Equipment Production

• It can be used to manufacture components for oil and gas equipment, such as pipeline connectors and drilling parts.

Aerospace Ground Support Equipment Fabrication

• For machining large components of aerospace ground support equipment, the FCW200P meets the industry’s strict precision and quality requirements.
