3 Axis Slant Bed Milling And Drilling Machine CNC Milling Machine
  • Name
  • Name
  • Name
  • Name
  • Name

3 Axis Slant Bed Milling And Drilling Machine CNC Milling Machine

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

3 Axis milling and drilling machine

,

Slant Bed milling and drilling machine

,

Slant Bed cnc milling machine

Product Description

3 Axis Slant Bed Milling And Drilling Machine Cnc Milling Machine



Specifications andTechnicalParameters
ltem unit TDX60
Processing dia range mm ∅10~∅100
Processing lenght range mm 150~600
Milling depth MAX mm 5
Center drill dia range mm A2~B10
Milling spinde speed r/min 300~800
Drilling spinde speed r/min 600~2000
Power of the main motor KW 5.5
Overall dimensions(LxWxH) mm 3000*1800*1700
Machine weight Kg 5800
Working Accuracy
Milling length consistency mm 0.05
Center hole depth consistency mm ≤0.03
Face runout of the Center hole mm ≤0.03
Center hole surface roughness Ra 1.6
 Optional function parameters
Turning dia MAX mm ∅60
Effective length of the package mm 20~30
Rigid tapping  mm M20

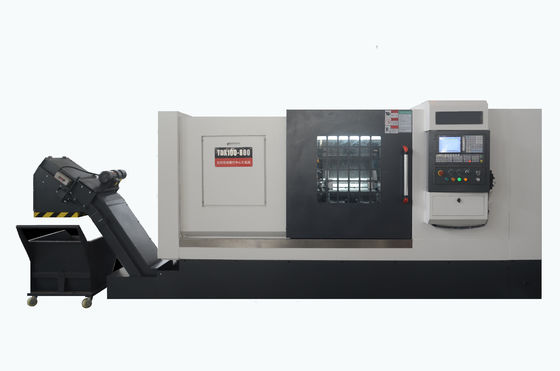

3 Axis Slant Bed Milling And Drilling Machine CNC Milling Machine 0

3 Axis Slant Bed Milling And Drilling Machine CNC Milling Machine 1

3 Axis Slant Bed Milling And Drilling Machine CNC Milling Machine 2



Tags:

mill drill lathe machine,

milling and drilling machine,

cnc mill drill machine
