TDX60: Inclined - Bed CNC Machine For Versatile Machining Within 150 - 600mm Length

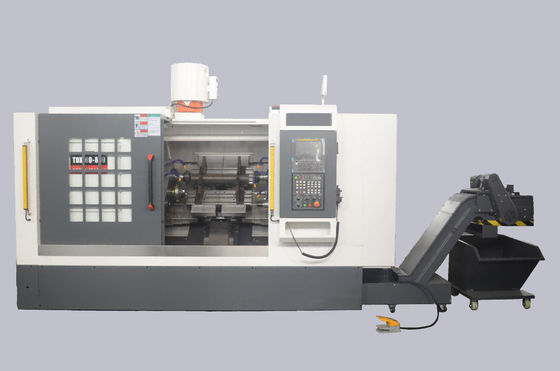

TDX60 Inclined - Bed Milling and Drilling Machine Product Introduction

Product Introduction

Product Features

1. Wide Processing Range
   • Diameter and Length: It can process workpieces with a diameter ranging from ∅10 to ∅100mm, and the processing length can vary from 150 to 600mm. This wide range enables the machining of various components, from small - sized parts to relatively larger ones. The optional maximum turning diameter of ∅60mm and an effective package length of 20 - 30mm add extra flexibility for turning operations.
   • Milling Depth: The machine can achieve a maximum milling depth of 5mm, allowing for the creation of deeper features on workpieces.
   • Spindle Speeds: The milling spindle speed ranges from 300 to 800 r/min, while the drilling spindle speed can reach from 600 to 2000 r/min. These adjustable speeds accommodate different materials and machining requirements, ensuring optimal performance.
   • Center Drill Range: The center drill diameter range from A2 to B10 ensures accurate center - hole drilling, which is crucial for subsequent machining steps.
2. Powerful Motor
   • A 5.5 - KW main motor provides sufficient power to drive the machine's operations smoothly. It can handle heavy - duty cutting tasks with ease, maintaining high efficiency and productivity.
3. High Precision
   • Milling Length Consistency: The milling length consistency is maintained within 0.05mm, guaranteeing uniform milling results across the workpiece.
   • Center Hole Accuracy: The center hole depth consistency is ≤0.03mm, and the face runout of the center hole is ≤0.03mm. The center hole surface roughness of Ra 1.6 meets strict quality standards, ensuring the precision of the machined parts.
4. Inclined - Bed Design
   • The inclined - bed structure offers several advantages. It provides better chip evacuation during machining, reducing the risk of chip accumulation that could affect the machining quality. Additionally, it enhances the stability of the machine during operation, especially when dealing with heavy or large - sized workpieces.
5. Rigid Tapping Function
   • The machine is equipped with a rigid tapping function for holes up to M20. This feature allows for precise and efficient tapping operations, improving the quality and productivity of thread - making processes.

Product Uses

1. Automotive Industry
   • Engine Components: The TDX60 can be used to machine engine components such as cylinder heads, pistons, and crankshafts. Its high - precision machining and wide processing range make it suitable for creating the complex shapes and tight tolerances required in engine parts.
   • Transmission Parts: It can also produce transmission gears, shafts, and housings. The rigid tapping function is particularly useful for creating threaded holes in these components.
2. Aerospace Sector
   • Structural Components: In aerospace manufacturing, the TDX60 can produce structural components like aircraft frames, wing ribs, and engine mounts. The high - precision requirements of the aerospace industry are well - met by this machine, ensuring the safety and reliability of aerospace parts.
   • Engine Parts: It can machine engine parts such as turbine blades, compressor discs, and engine casings. The ability to handle different materials and the high - precision machining capabilities make it an ideal choice for aerospace engine component production.
3. General Machinery Manufacturing
   • Industrial Equipment: For general machinery manufacturing, the TDX60 can be used to produce parts for pumps, valves, and motors. It can create the precise holes, slots, and surfaces required for these components, ensuring their proper functionality.
   • Tool and Die Making: In tool and die making, the TDX60 can be used to machine molds, dies, and cutting tools. The machine's ability to achieve tight tolerances and its versatile machining operations are valuable for creating high - quality tools and dies.
