Dual Spindle Inclined Bed Machine For Simultaneous Bilateral Machining
  • Name
  • Name
  • Name
  • Name
  • Name

Dual Spindle Inclined Bed Machine For Simultaneous Bilateral Machining

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

Inclined Bed Drilling And Milling Machine

,

Dual Spindle Drilling And Milling Machine

,

Dual Spindle cnc drilling milling machine

Product Description

TDX80 Dual - Spindle Inclined - Bed Machine For Simultaneous Bilateral Machining



Specifications and Technical Parameters
ltem unit TDX80
Processing dia range mm ∅10~∅100
Processing lenght range mm 200~800
Milling depth MAX mm 5
Center drill dia range mm A2-B10
Milling spinde speed r/min 300-800
Drilling spinde speed r/min 600~2000
Power of the main motor KW 5.5
Overall dimensions(LxWxH) mm 3500*1800*1700
Machine weight Kg 6200
Working Accuracy
Milling length consistency mm 0.05
Center hole depth consistency mm ≤0.03
Face runout of the Center hole mm ≤0.03
Center hole surface roughness Ra 1.6
 Optional function parameters
Turning dia MAX mm ∅80
Effective length of the package mm 20~30
Rigid tapping  mm M24

TDX80 Product Introduction

Product Introduction

The TDX80 is a high - performance inclined - bed milling and drilling machine with dual - spindle design, ideal for efficient and precise machining in various industries.

Product Features

  1. Processing Range: Handles workpieces from ∅10 - ∅100mm in diameter and 200 - 800mm in length. Max turning dia is ∅80mm.
  2. Machining Capabilities: 5mm max milling depth, 300 - 800 r/min milling spindle speed, 600 - 2000 r/min drilling spindle speed. Rigid tapping up to M24.
  3. Powerful Motor: A 5.5 - KW main motor ensures smooth operation.
  4. High Precision: Milling length consistency within 0.05mm, center hole depth ≤0.03mm, face runout ≤0.03mm, surface roughness Ra 1.6.
  5. Dual - Spindle Design: Allows simultaneous bilateral machining for higher productivity.
  6. Inclined - Bed Structure: Offers better chip evacuation and stability.

Product Uses

  1. Automotive: For engine and transmission parts.
  2. Aerospace: In manufacturing structural and engine components.
  3. General Machinery: Producing parts for pumps, valves, and tools.

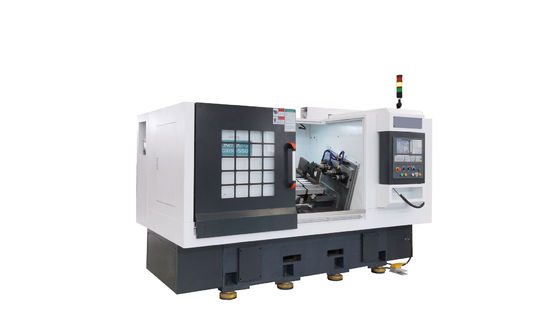

    Dual Spindle Inclined Bed Machine For Simultaneous Bilateral Machining 0

    Dual Spindle Inclined Bed Machine For Simultaneous Bilateral Machining 1

    Dual Spindle Inclined Bed Machine For Simultaneous Bilateral Machining 2



Tags:

mill drill lathe machine,

milling and drilling machine,

cnc mill drill machine
