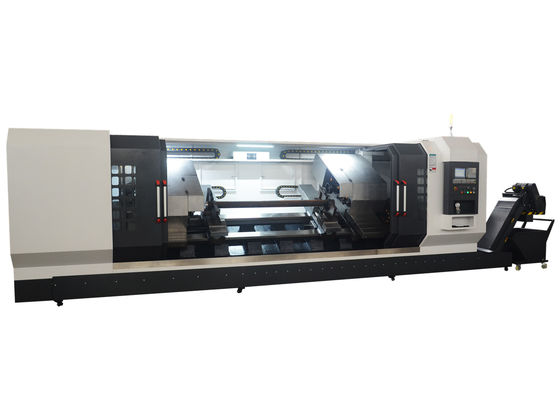

FDX200 Dual - Spindle Inclined - Bed Machining Solution

1. Product Introduction

2. Product Features

Wide Processing Scope

• Diameter and Length: It can machine workpieces with diameters from ∅50 to ∅200mm. The optional turning function allows for a maximum turning diameter of ∅200mm. With a processing length range of 300 - 3000mm, it is well - suited for long - sized components. The effective package length is 20 - 30mm.
• Milling and Drilling: The maximum milling depth reaches 5mm. The milling spindle speed ranges from 100 - 400 r/min, and the drilling spindle speed varies from 300 - 1200 r/min. The center drill diameter ranges from A2 - B10, and it supports rigid tapping up to M24.

High - Powered and Precise

• Power: A 15 - KW main motor provides robust power, enabling efficient machining even for tough materials.
• Precision: Milling length consistency is maintained within ±0.1mm. The center hole depth consistency is ≤0.05mm, face runout is ≤0.05/∅100, and the center hole surface roughness is Ra 3.2.

Structural Benefits

• Inclined - Bed Design: The inclined - bed structure facilitates smooth chip evacuation. The dual - spindle setup allows for concurrent operations, enhancing productivity.

3. Product Applications

Heavy - Equipment Manufacturing

• In the production of construction machinery parts like large - diameter axles and long - length hydraulic cylinder rods. The machine's large processing range and high precision meet the requirements of heavy - equipment manufacturing.

Energy Industry

• For manufacturing components such as large - scale turbine shafts. Its capacity to handle large - sized workpieces and maintain precision is crucial for the energy industry.

Shipbuilding

• Suitable for machining various ship components, including propeller shafts. The FDX200's ability to work on long and large - diameter parts makes it an ideal choice for shipbuilding applications.
