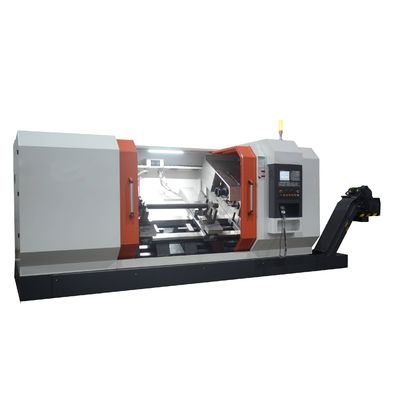

FDX300 Precision - Built Dual - Spindle Inclined - Bed Machining Prodigy

FDX300 Dual - Spindle Inclined - Bed Machining Powerhouse

1. Product Introduction

2. Product Features

Vast Processing Capabilities

• Diameter and Length: The machine can handle workpieces with diameters from ∅50 to ∅300mm. The optional turning function supports a maximum diameter of ∅200mm. With a processing length range of 400 - 3000mm, it is perfect for long - shaft components. The effective package length is 20 - 30mm.
• Milling and Drilling: It offers a maximum milling depth of 4mm. The milling spindle speed ranges from 20 - 200 r/min, while the drilling spindle speed varies from 300 - 1200 r/min. The center drill diameter ranges from A2 - B10, and it features rigid tapping up to M24.

High - Powered and Accurate

• Power: A 15 - KW main motor ensures stable operation, even during heavy - duty machining.
• Precision: Milling length consistency is maintained within ±0.1mm. Center hole depth consistency is ≤0.05mm, face runout is <0.05/∅100, and the center hole surface roughness is Ra 3.2.

Design Advantages

• Inclined - Bed Design: This setup enables efficient chip evacuation. The dual - spindle configuration allows for parallel operations, significantly boosting productivity.

3. Product Applications

Construction Equipment Manufacturing

• In the production of axles and other large - scale components for construction machinery, where the large processing range and high precision of the FDX300 are crucial.

Power Generation

• For manufacturing turbine shafts and other components used in power plants. The machine’s ability to handle long and large - diameter parts makes it suitable for the power generation industry.

Mining Machinery Production

• Ideal for machining components like large - diameter rollers and shafts used in mining equipment. Its high - power performance can meet the demanding requirements of mining machinery manufacturing.
