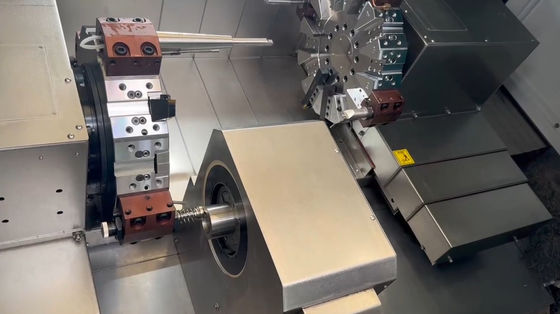

FCX65 Precision Dual - Head Inclined - Bed Lathe for ∅65 Machining

FCX65 Dual - Head Inclined - Bed Lathe

1. Product Introduction

2. Product Features

Processing Capacity

• Clamping and Length: This lathe can clamp workpieces with a maximum diameter of ∅65mm. It supports a processing length range of 200 - 2000mm, suiting various part sizes.
• Speed and Power: Equipped with an 11 - kW main motor, it reaches a maximum speed of 2500 r/min, ensuring efficient machining.

Precision

• Clamping and Machining: The main spindle clamp body offers an accuracy of 0.005mm. Repeated clamping precision is less than 0.03mm. The coaxiality of both ends during processing is ≤0.02mm, and total machining length error is within ±0.03mm.

Structure and Tooling

• Inclined - Bed Design: The inclined - bed structure promotes smooth chip evacuation and stability.
• Servo Turrets: Each end is fitted with a 12 - station servo turret, allowing for flexible tool changes and multitasking.

3. Product Applications

Automotive Industry

• Ideal for manufacturing automotive shafts, axles, and transmission components. The lathe’s precision and dual - head design meet the high - volume and high - precision requirements of the automotive sector.

Machinery Manufacturing

• Used to produce parts for pumps, valves, and industrial machinery. Its ability to handle long - length workpieces makes it suitable for manufacturing shafts and other key components.

Aerospace Sub - component Production

• Can be employed to create precision parts for aerospace ground support equipment, ensuring the parts meet strict aerospace quality standards
