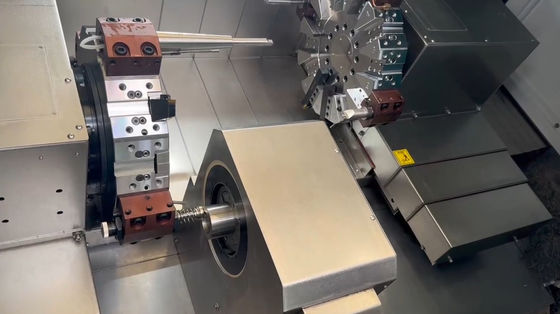

FCX95 Inclined - Bed Dual - Station Precision CNC Lathe

FCX95 Dual - Head Inclined - Bed Lathe

Product Introduction

Product Features

Processing Range

• Clamping and Length: Accommodates workpieces up to ∅95mm in diameter. The processing length ranges from 200 - 2000mm, handling both short and long - shaft components.

Precision

• Clamping: The main spindle clamp body offers 0.005mm accuracy, with workpiece repeated clamping precision under 0.03mm.
• Machining: It maintains ≤0.02mm coaxiality on both ends and ±0.03mm total machining length error.

Performance

• Power: An 11 - kW main motor enables a maximum speed of 1800 r/min, ensuring efficient metal removal.
• Structure: The inclined - bed design facilitates chip evacuation and provides stable machining.

Product Applications

Automotive Manufacturing

• Fabricates transmission shafts, steering components, and engine parts. The lathe’s precision meets the industry’s high - quality requirements.

Energy Sector

• Produces shafts for turbines, pumps, and generators. Its capacity to handle large - diameter and long - length workpieces is well - suited for energy equipment manufacturing.

General Machinery

• Creates parts for conveyor systems, industrial gears, and hydraulic cylinders, contributing to reliable machinery operation across various industries.
