MOQ:	1
Price:	negotiable
Standard Packaging:	Different packaging methods are adopted according to different modes of transport.
Payment Method:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

H.SON

Highlight:

6 Inches CNC Power Chuck

Hydraulic CNC Power Chuck

3 Jaw hydraulic chuck jaws

Product Description

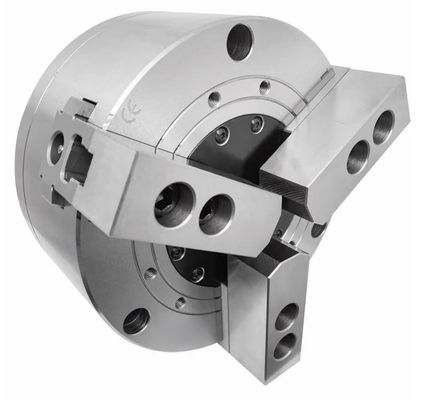

Hot Selling Solid 250mm 6 Inches Cnc Power Chuck 3 Jaw Hydraulic Lathe Chuck

6 Inches CNC Power Chuck Solid 250mm 3 Jaw Hydraulic Chuck Jaws 0

Size parameter
Spec.		A	B	C	D	D1	D2	E	E1	F	G1	G2	H
KT06-3	A4	165	81	140	104.8	63.51	116	5	20	45	11	-1	19
KT06-3	A5	165	81	140	104.8	82.56	116	5	15	45	11	-1	19
spec.		Kmax.	L	L1		M	N	P	S	T	U	A1	6-M1
KT06-3	A4	M55×2	6-M10	16	16	37	73	20	31	12	6-M10	65	M8
KT06-3	A5	M55×2	6-M10	16	16	37	73	20	31	12	3-M6	65	M8
Performance parameter
Spec.		Plunger stroke	Jaw stroke (Dia.)	Chucking Dia.mm Max.	Chucking Dia.mm Min.	Max.D.B.pull	Max.clamping force	Max.speed	Kg.m2	Weight		Matching cyl.	Max.pressure Mpa(kgf/cm2)
KT06-3	A4	12	5.5	168	15	21.5(2200)	56.8(5800)	6000	0.06	11.9	14.3	TK646	2.8(28)
KT06-3	A5	12	5.5	168	15	21.5(2200)	56.8(5800)	6000	0.06	11.9	13.7	TK646	2.8(28)
