MOQ:	1
Price:	negotiable
Standard Packaging:	Different packaging methods are adopted according to different modes of transport.
Payment Method:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

H.SON

Highlight:

10 Inches CNC Power Chuck

250mm CNC Power Chuck

3 Jaw hydraulic lathe chucks

Product Description

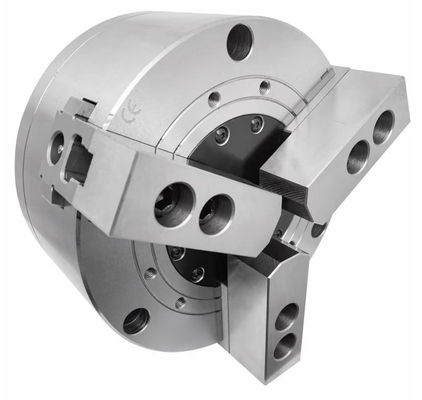

Hot Selling Solid 250mm 10 Inches Cnc Power Chuck 3 Jaw Hydraulic Lathe Chuck

10 Inches CNC Power Chuck Solid 250mm 3 Jaw Hydraulic Lathe Chucks 0

Size parameter
Spec.		A	B	C	D	D1	D2	E	E1	F	G1	G2	H
KT10-3	A6	254	100	220	171.4	106.38	133.4	5	28	75	9	-10	25
KT10-3	A8	254	100	220	171.4	139.72	190	5	18	75	9	-10	25
spec.		Kmax.	L	L1		M	N	P	S	T	U	A1	6-M1
KT10-3	A6	M85×2	6-M16	22	18	43	110	30	40	16	6-M12	102	M10
KT10-3	A8	M85×2	6-M16	22	24	43	110	30	40	16	3-M8	102	M10
Performance parameter
Spec.		Plunger stroke	Jaw stroke (Dia.)	Chucking Dia.mm Max.	Chucking Dia.mm Min.	Max.D.B.pull	Max.clamping force	Max.speed	Kg.m2	Weight		Matching cyl.	Max.pressure Mpa(kgf/cm2)
KT10-3	A6	19	8.8	254	31	42.6(4380)	110.7(11300)	4200	0.33	34.5	41.5	TK1075	2.7(27)
KT10-3	A8	19	8.8	254	31	42.6(4380)	110.7(11300)	4200	0.33	34.5	40	TK1075	2.7(27)

Tags:

cnc power chuck,

cnc lathe chuck,

hydraulic lathe chuck
