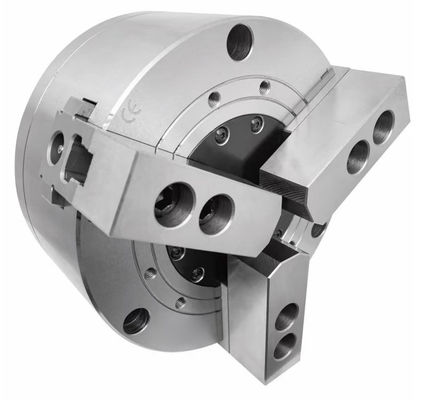

250mm 12 Inches CNC Power Chuck Solid 3 Jaw Hydraulic Chuck
  • Name

250mm 12 Inches CNC Power Chuck Solid 3 Jaw Hydraulic Chuck

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

12 Inches CNC Power Chuck

,

250mm CNC Power Chuck

,

Solid 3 jaw hydraulic chuck

Product Description

Hot Selling Solid 250mm 12 Inches Cnc Power Chuck 3 Jaw Hydraulic Lathe Chuck

250mm 12 Inches CNC Power Chuck Solid 3 Jaw Hydraulic Chuck 0

Size parameter
Spec. A B C D D1 D2 E E1 F G1 G2 H
KT12-3    A8 304 110 220 171.4 139.72 190 6 18 91 8 -15 28
spec. Kmax. L L1 M N P S T U A1 6-M1
KT12-3    A8 M100×2 6-M16 23 25 51 130 30 50 21 3-M8 115 M10
Performance parameter
Spec.   Plunger
stroke		 Jaw stroke
(Dia.)		 Chucking Dia.mm Max. Chucking Dia.mm Min. Max.D.B.pull Max.clamping
force		 Max.speed Kg.m2 Weight Matching cyl. Max.pressure
Mpa(kgf/cm2)
KT12-3 A8 23 10.6 304 34 54.9(5600) 143.6(14650) 3300 0.77 56.6 59.5 TK1291 2.7(27)





Tags:

cnc power chuck,

cnc lathe chuck,

hydraulic lathe chuck
