FCX200: 15 - KW Dual - Spindle Inclined - Bed Bilateral Precision Cutting Specialist

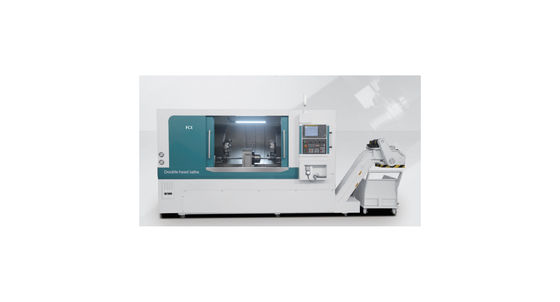

FCX200 Dual - Spindle Inclined - Bed Lathe

1. Product Introduction

2. Product Features

Machining Range

• Clamping & Length: The lathe can clamp workpieces up to ∅200mm in diameter. With a processing length range of 200 - 2000mm, it’s suitable for various component sizes.

Precision

• Clamping: The main spindle clamp body has an accuracy of 0.005mm, and repeated clamping precision is less than 0.03mm.
• Machining: It ensures ≤0.02mm coaxiality of both ends and ±0.03mm total machining length error.

Performance

• Power: A 15 - kW main motor drives the lathe at a maximum speed of 1000 r/min.
• Tooling: Equipped with two 12 - station servo turrets, it allows for flexible tool changes.
• Structure: The dual - spindle and inclined - bed design enables bilateral synchronous machining and efficient chip removal.

3. Product Applications

Heavy - Equipment Manufacturing

• Ideal for machining large shafts and gears for construction machinery, mining equipment, and agricultural machinery.

Energy Sector

• Used to produce components like turbine shafts, generator rotors, and pipeline fittings.

Aerospace Ground Support

• Creates high - precision parts for ground - based aerospace equipment, meeting strict industry standards.
