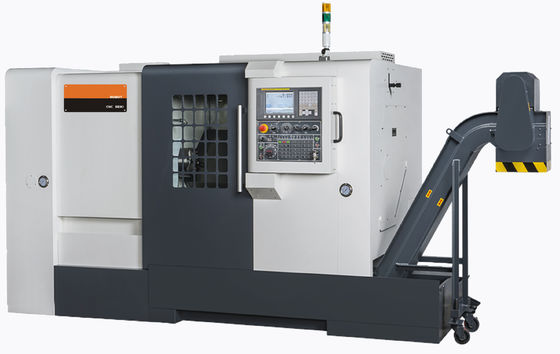

500mm Machining Length Y Axis Tailstock All Round CNC Lathe Machine

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

500mm cnc lathe machine

,

Y Axis cnc lathe machine

,

All Round cnc lathe machine services

Product Description

AT-360MY: 500-Mm Machining Length Y-Axis Tailstock All-Round Lathe



CONTENT Units AT-360MY
Turret Turret specifications Model TCSM
Power  turret
Turret type/Number of tools pcs BMT55-12T
Travel Maximum rotation diameter of the
hod		 mm 700
Two centroid distance mm 685
Z Processing length mm 500
Maximum machining diameter mm 380
Bar processing diameter mm 75(92)
System
configuration		 FANUC OI-TF /
Power tools motor KW 3.7
 Spindle Oil pressure Inch 10(12)
Nose end Type A2-8
Through hole diameter mm 92(106)
Bearing type Type NN3020
Bearing diameter mm 130(140)
Spindle motor KW 11-15(guangyu)
Spindle speed rpm 3000(2500)
Secondary
spindle		 Oilpressure Inch /
Nose end Type /
Through hole diameter mm /
Spindle motor KW /
Spindle speed rpm /
X-axis Travel mm 245
Speed m/min 20
Servo motor Kw 3.0
Screw mm R32/P10
Repeatability   0.002
Z-axis Travel mm 550
Speed m/min 20
Servo motor Kw 3.0
Screw mm R40/P10
Repeatability mm 0.005
Y-axis Travel mm 100
Speed m/min 15
Servo motor Kw 3.0
Screw mm R32/P10
Repeatability mm 0.005
B-axis Travel mm /
Speed m/min /
Servo motor Kw /
Screw mm /
Repeatability mm /
Tail seat Control mode Type programmable
Mandrel outer diameter mm 80
Morse taper Type MT5
Track Type Hard track
Track Type Hard track
Track Type Hard track
Water tank capacity Liter 220

Mechanical size		 Floor area cm 277x177
Mechanica weight kg 6000
Packing size cm 336x230×228

AT-360MY High - Performance CNC Lathe

1. Product Introduction

The AT-360 is a state - of - the - art CNC lathe equipped with Y - axis and tailstock functions. Engineered for industrial machining, it combines power, precision, and versatility.

2. Product Features

Processing Capacity

  • Turret: It features a 12 - station servo radial cutter turret, enabling diverse cutting operations.
  • Travel: The bed can support a maximum rotation diameter of 700mm. With a Z - axis processing length of 600mm and two - centroid distance of 685mm, it can handle large - scale workpieces. The maximum machining diameter reaches 450mm, and bar processing diameters range from 75 to 92mm.

Precision

  • Axes: The X - axis has a travel of 255 + 40mm with a speed of 20m/min and repeatability of 0.003mm. The Z - axis travels 600mm at 20m/min with a repeatability of 0.005mm.

Configuration

  • Spindle: Equipped with an 11 - 15kW wide - range motor, with spindle speeds up to 3000 (2500) rpm. The spindle has a 10" or 12" oil - pressure nose end, A2 - 8 type nose, and through - hole diameters of 92 (106) mm.
  • System: Adopts the FANUC 0I - TF system for reliable operation.
  • Tracks: Both X and Z axes feature hard tracks for stability.

3. Product Applications

Automotive Industry

  • Manufacture engine shafts, transmission gears, and suspension components with high precision and efficiency.

Aerospace

  • Create parts for aircraft engines and landing gear, meeting the strict requirements of the aerospace industry.

General Machinery

  • Machine large - scale shafts, spindles, and bearings for various industrial machinery.
