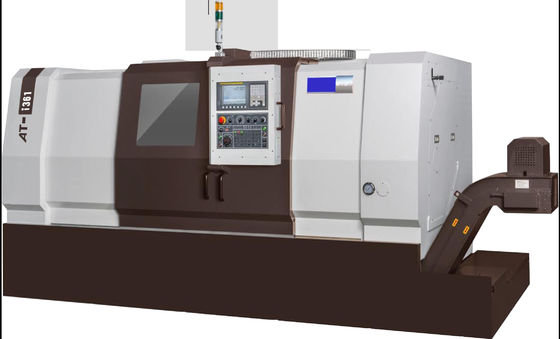

Long Shaft Machining CNC Lathe Mill Dual Spindle Hard Rail Master
  • Name
  • Name
  • Name
  • Name
  • Name

Long Shaft Machining CNC Lathe Mill Dual Spindle Hard Rail Master

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

Long Shaft Machining cnc lathe mill

,

Dual Spindle cnc lathe mill

,

Dual Spindle cnc lathe milling machine

Product Description

AT-361MC2 Dual-Spindle Hard-Rail Master For Long-Shaft Machining



Machine tool technical parameter table:
Content Units AT-361MC2
Turret Turret specifications Model TCSM
Power  turret
Turret type/Number of tools pcs BMT65-12T
Travel Maximum rotation diameter of the
hod		 mm 700
Two centroid distance mm
ZProcessing length mm 1100
Maximum machining diameter mm 380
Bar processing diameter mm 75(92)
System
configuration		 FANUC OI-TF
Power tools motor KW 3.7
 Spindle Oil pressure Inch 10(12)
Nose end Type A2-8
Through hole diameter mm 92(106)
Bearing type Type NN3026(3028)
Bearing diameter mm 130(140)
Spindle motor KW 11-15(guangyu)
Spindle speed rpm 3000(2500)
Secondary
spindle		 Oilpressure Inch 6寸
Nose end Type A2-5
Through hole diameter mm 45
Spindle motor KW 7.5--11
Spindle speed rpm 4500
X-axis Travel mm 230
Speed m/min 20
Servo motor Kw 3.0
Screw mm R32/10
Repeatability   0.003
Z-axis Travel mm 1100
Speed m/min 20
Servo motor Kw 3.0
Screw mm R40/10
Repeatability mm 0.007
Y-axis Travel mm
Speed m/min /
Servo motor Kw
Screw mm
Repeatability mm
B-axis Travel mm 1100
Speed m/min 15
Servo motor Kw 3
Screw mm R40/10
Repeatability mm ±0.005
Tail seat Control mode Type
Mandrel outer diameter mm
Morse taper Type /
 X Track Type Hard track
 Y Track Type Hard track
Z Track Type
Water tank capacity Liter 300

Mechanical size		 Floor area cm 355x177
Mechanica weight kg 6900
Packing size cm 400x230×228

AT-361MC2 Dual - Spindle Hard - Rail Lathe

1. Product Introduction

The AT - 361MC2 is an advanced dual - spindle lathe featuring hard rails. Engineered to boost productivity and precision, it caters to diverse industrial machining needs.

2. Product Features

Machining Capacity

  • Dual Spindles: The main spindle, powered by an 11 - 15kW wide - range motor, rotates at up to 3000 (2500) rpm. The secondary spindle, with a 7.5 - 11kW motor, reaches 4500 rpm. This setup enables concurrent machining, significantly cutting production time.
  • Turret: Equipped with a BMT55 - 12T power turret of TCSM model, it offers flexibility in tooling for various machining operations.
  • Travel: The lathe can handle a maximum rotation diameter of 700mm. With a Z - axis processing length of 1100mm, it’s well - suited for long - shaft workpieces. The maximum machining diameter is 380mm, and bar processing diameters range from 75 to 92mm.

Precision

  • Axes: The X - axis travels 230mm with a speed of 20m/min and repeatability of 0.003mm. The Z - axis, with a travel of 1100mm at 20m/min, has a repeatability of 0.007mm. The B - axis travels 1100mm at 15m/min with a repeatability of ±0.005mm.
  • Spindle: High - quality bearings ensure smooth and accurate spindle operation.

Configuration

  • System: Adopts the reliable FANUC 0I - TF system.
  • Tracks: Hard rails on X, Z, and likely other relevant axes enhance stability and load - bearing capacity during machining.

3. Product Applications

Automotive Industry

  • Manufacture engine shafts, transmission components, and axles with high precision and efficiency.

Aerospace Sector

  • Produce parts like turbine shafts and landing - gear components that require tight tolerances.

Energy Equipment Manufacturing

  • Create long - shaft components for power generation equipment, such as wind turbines and generators.
