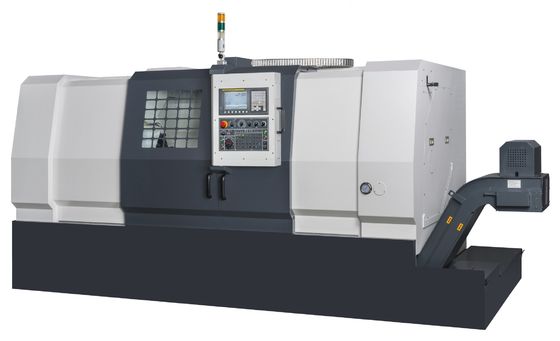

Single Spindle Hard Rail Lathe With Tailstock 800-1100mm Processing Length

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

Single Spindle CNC Turn Mill Machine

,

z axis CNC Turn Mill Machine

,

X axis cnc lathe machine axis

Product Description

AT - 361MY:800-1100MM Processing Length Single - Spindle Hard - Rail Lathe With Tailstock For Large - Swing Machining



Machine tool technical parameter table:
Content Units AT-361MY
Turret Turret specifications Model TCSM
Power  turret
Turret type/Number of tools pcs BMT65-12T
Travel Maximum rotation diameter of the
hod		 mm 700
Two centroid distance mm 1250
ZProcessing length mm 1100
Maximum machining diameter mm 380
Bar processing diameter mm 75(92)
System
configuration		 FANUC OI-TF
Power tools motor KW 3.7
 Spindle Oil pressure Inch 10(12)
Nose end Type A2-8
Through hole diameter mm 92(106)
Bearing type Type NN3026(3028)
Bearing diameter mm 130(140)
Spindle motor KW 11-15(guangyu)
Spindle speed rpm 3000(2500)
Secondary
spindle		 Oilpressure Inch /
Nose end Type /
Through hole diameter mm
Spindle motor KW
Spindle speed rpm /
X-axis Travel mm 230
Speed m/min 20
Servo motor Kw 3.0
Screw mm R32/10
Repeatability   0.003
Z-axis Travel mm 1100
Speed m/min 20
Servo motor Kw 3.0
Screw mm R40/10
Repeatability mm 0.007
Y-axis Travel mm 100
Speed m/min 15
Servo motor Kw 3
Screw mm R32/10
Repeatability mm 0.005
B-axis Travel mm
Speed m/min
Servo motor Kw
Screw mm /
Repeatability mm
Tail seat Control mode Type programmable
Mandrel outer diameter mm 80
Morse taper Type MT5
 X Track Type Hard track
 Y Track Type Hard track
Z Track Type Hard track
Water tank capacity Liter 300

Mechanical size		 Floor area cm 355x177
Mechanica weight kg 6400
Packing size cm 400×230x228

AT-361MY Single-Spindle CNC Lathe

1. Product Introduction

The AT-361MY is a high - performance single - spindle CNC lathe with hard rails and a programmable tailstock. Engineered for industrial machining, it strikes a balance between precision and productivity.

2. Product Features

Machining Capacity

  • Turret: Equipped with a BMT55 - 12T power turret of TCSM model, enabling versatile cutting operations.
  • Travel: The lathe can handle a maximum rotation diameter of 700mm. With a Z - axis processing length of 1100mm, it is suitable for long - shaft workpieces. The maximum machining diameter reaches 380mm, and bar processing diameters range from 75 to 92mm.

Precision

  • Axes: The X - axis travels 230mm with a speed of 20m/min and repeatability of 0.003mm. The Y - axis travels 100mm at 15m/min with 0.005mm repeatability. The Z - axis, with a travel of 1100mm at 20m/min, has a repeatability of 0.007mm.

Configuration

  • Spindle: Powered by an 11 - 15kW wide - range motor, the spindle can reach speeds of up to 3000 (2500) rpm. It features a 10” (12”) oil - pressure nose end and A2 - 8 nose type.
  • System: Adopts the reliable FANUC 0I - TF system.
  • Tracks: Hard rails on X, Y, and Z axes ensure stable machining.

3. Product Applications

Machinery Manufacturing

  • Ideal for machining shafts, spindles, and gears for industrial machinery, meeting high - precision requirements.

Automotive Parts Production

  • Can produce long - type automotive parts such as drive shafts and axles efficiently.

Energy Equipment Fabrication

  • Manufacture components like long - rod parts for oil and gas pipelines with the lathe’s long - stroke machining capabilities.
