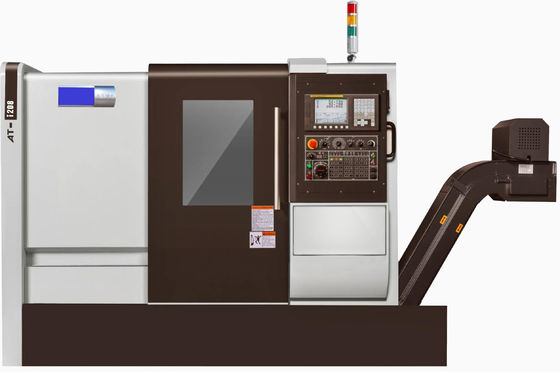

Dual Spindle CNC Turn Mill Machine Hard Rail Power Turret Lathe
  • Name
  • Name
  • Name
  • Name
  • Name

Dual Spindle CNC Turn Mill Machine Hard Rail Power Turret Lathe

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

15m/min Dual Spindle CNC Turn Mill Machine

,

Dual Spindle CNC Turn Mill Machine

,

Dual Spindle cnc lathe automation

Product Description

AT-360MC2 Dual-Spindle Hard-Rail Power Turret Lathe





CONTENT Units AT-360MC2
Turret Turret specifications Model TCSM
Power  turret
Turret type/Number of tools pcs BMT55-12T
Travel Maximum rotation diameter of the
hod		 mm 700
Two centroid distance mm /
ZProcessing length mm 500
Maximum machining diameter mm 380
Bar processing diameter mm 75(92)
System
configuration		 FANUC OI-TF /
Power tools motor KW 3.7
 Spindle Oil pressure Inch 10(12)
Nose end Type A2-8
Through hole diameter mm 92(106)
Bearing type Type NN3020
Bearing diameter mm 130(140)
Spindle motor KW 11-15(guangyu)
Spindle speed rpm 3000(2500)
Secondary
spindle		 Oilpressure Inch 6寸
Nose end Type A2-5
Through hole diameter mm 45
Spindle motor KW 7.5--11
Spindle speed rpm 4500
X-axis Travel mm 245
Speed m/min 20
Servo motor Kw 3.0
Screw mm R32/P10
Repeatability   0.003
Z-axis Travel mm 550
Speed m/min 20
Servo motor Kw 3.0
Screw mm R40/P10
Repeatability mm 0.005
Y-axis Travel mm /
Speed m/min /
Servo motor Kw /
Screw mm /
Repeatability mm /
B-axis Travel mm 550
Speed m/min 15
Servo motor Kw 3
Screw mm R40/P10
Repeatability mm ±0.005
Tail seat Control mode Type /
Mandrel outer diameter mm /
Morse taper Type /
Track Type Hard track
Track Type Hard track
Track Type /
Water tank capacity Liter 220

Mechanical size		 Floor area cm 277x177
Mechanica weight kg 6500
Packing size cm 336x230x228
