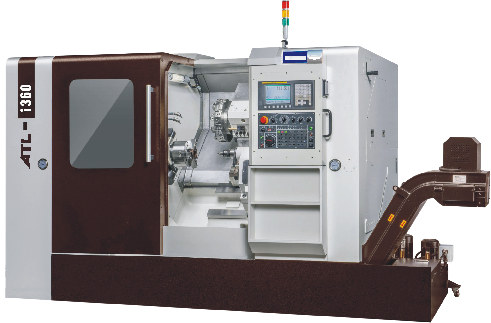

Y-Axis CNC Lathe Machine with Hard Guideways Live Turret & Programmable Tailstock

Detail Information
Product Description
Detail Information
Highlight:

Hard Guideways CNC Lathe Machine

,

Y-Axis CNC Lathe Machine

,

Programmable Tailstock CNC Lathe

Product Description
Machine tool technical parameter table:


Content Units AT-361MY
Turret Turret specifications Model TCSM
Power  turret
Turret type/Number of tools pcs BMT55-12T
Travel Maximum rotation diameter of the
hod		 mm 700
Two centroid distance mm 1250
Z Processing length mm 1100
Maximum machining diameter mm 380
Bar processing diameter mm 75(92)
System
configuration		 FANUC OI-TF
Power tools motor KW 3.7
 Spindle Oil pressure Inch 10(12)
Nose end Type A2-8
Through hole diameter mm 92(106)
Bearing type Type NN3026(3028)
Bearing diameter mm 130(140)
Spindle motor KW 11-15(guangyu)
Spindle speed rpm 3000(2500)
Secondary
spindle		 Oilpressure Inch /
Nose end Type /
Through hole diameter mm
Spindle motor KW
Spindle speed rpm /
X-axis Travel mm 230
Speed m/min 20
Servo motor Kw 3.0
Screw mm R32/10
Repeatability
0.003
Z-axis Travel mm 1100
Speed m/min 20
Servo motor Kw 3.0
Screw mm R40/10
Repeatability mm 0.007
Y-axis Travel mm 100
Speed m/min 15
Servo motor Kw 3
Screw mm R32/10
Repeatability mm 0.005
B-axis Travel mm
Speed m/min
Servo motor Kw
Screw mm /
Repeatability mm
Tail seat Control mode Type programmable
Mandrel outer diameter mm 80
Morse taper Type MT5
 X Track Type Hard track
 Y Track Type Hard track
Z Track Type Hard track
Water tank capacity Liter 300
Mechanical size Floor area cm 355x177
Mechanica weight kg 6400
Packing size cm 400×230x228

AT-361MY Configurable Precision Turning Center with Y-Axis & Hard Guideways

The AT-361MY is a robust and highly versatile CNC turning center engineered for heavy-duty machining and complex multi-task operations. Built with superior rigidity from its hardened guideways, it guarantees exceptional accuracy and long-term durability for the most demanding applications.

Key Features & Configurations:

  • Unmatched Rigidity: Features hardened guideways on all axes (X, Y, Z) for supreme stability, reduced vibration, and heavy-depth-of-cut capability.

  • Complete Multi-Functionality: The standard integrated Y-axis (±100mm) enables complex off-center milling and drilling without secondary operations.

  • Flexible Turret Options: Configure your machine with a high-speed servo turret for rapid positioning or a 12-station BMT live turret (3.7kW) for full C-axis milling and drilling power.

  • Tailstock or Sub Spindle: Choose a programmable tailstock for superior support or opt for an optional sub-spindle to enable complete back-working and reduced cycle times in a single setup.

  • High-Performance Core: Powered by a robust 11-15kW spindle (92mm bore) and the reliable FANUC Oi-TF control system, ensuring power, speed, and seamless operation.

The AT-361MY is the ideal solution for job shops and production facilities looking for a configurable, heavy-cut, and precise turning center to handle intricate parts from start to finish.
