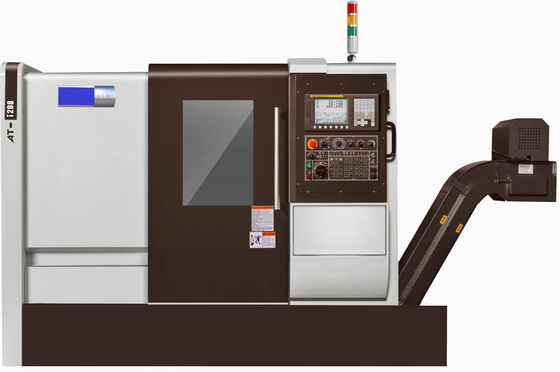

500mm Machining Length CNC Lathe Machine With 12 Tool Power Turret

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

500mm cnc lathe

,

cnc lathe Machine

,

FANUC Control cnc lathe and milling machine

Product Description

360MY 500MM Maching Length CNC Lathe Machine With 12-Tool Power Turret, FANUC Control, And High Rigidity Hard Track



CONTENT Units AT-360MY
Turret Turret specifications Model TCSM
Power  turret
Turret type/Number of tools pcs BMT55-12T
Travel Maximum rotation diameter of the
hod		 mm 700
Two centroid distance mm 685
ZProcessing length mm 500
Maximum machining diameter mm 380
Bar processing diameter mm 75(92)
System
configuration		 FANUC OI-TF /
Power tools motor KW 3.7
 Spindle Oil pressure Inch 10(12)
Nose end Type A2-8
Through hole diameter mm 92(106)
Bearing type Type NN3020
Bearing diameter mm 130(140)
Spindle motor KW 11-15(guangyu)
Spindle speed rpm 3000(2500)
Secondary
spindle		 Oilpressure Inch /
Nose end Type /
Through hole diameter mm /
Spindle motor KW /
Spindle speed rpm /
X-axis Travel mm 245
Speed m/min 20
Servo motor Kw 3.0
Screw mm R32/P10
Repeatability   0.002
Z-axis Travel mm 550
Speed m/min 20
Servo motor Kw 3.0
Screw mm R40/P10
Repeatability mm 0.005
Y-axis Travel mm 100
Speed m/min 15
Servo motor Kw 3.0
Screw mm R32/P10
Repeatability mm 0.005
B-axis Travel mm /
Speed m/min /
Servo motor Kw /
Screw mm /
Repeatability mm /
Tail seat Control mode Type programmable
Mandrel outer diameter mm 80
Morse taper Type MT5
Track Type Hard track
Track Type Hard track
Track Type Hard track
Water tank capacity Liter 220

Mechanical size		 Floor area cm 277x177
Mechanica weight kg 6000
Packing size cm 336x230×228



Tags:

CNC Turn Mill Machine,

cnc mill turn center,

dual spindle lathe
