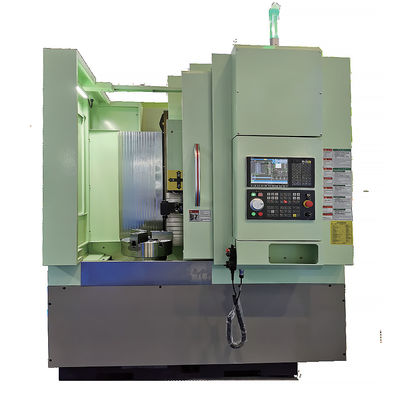

Servo Turret Lathe CNC Machine High Speed Cutting Vertical Lathe Machine
  • Name

Servo Turret Lathe CNC Machine High Speed Cutting Vertical Lathe Machine

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

Servo Turret lathe cnc machine

,

Vertical lathe cnc machine

,

High Speed Cutting vertical lathe machine

Product Description

Lathe Cnc Machine High Speed Cutting Capability Be Widely Used Vertical Lathe Machine



item LV600
Processing ability
Maximum turning diameter on bed body ∅600mm
Maximum turning diameter ∅600mm
Maximum turning outer circle length 600mm
Maximum turninginner hole length 300mm
Maximum workpiece weight 600kg
Spindle
Nose end of spindle A2-8
Spindle chuckspecifications 12"
Maximum spindle speed 0～2500
Feed shaft
X/Z axis travel 350/600mm
x/Z axis fast displacement 24/24m/min
X/Z axis screw specifications 4010/4010
X/Z rail specifications 45pin roller
Positioning accuracy (JlS) ±0.003/300
Repeated positioning accuracy (JlS) ±0.003
Motor
Spindle motor power 15kw
X/Z axis motor power 3KW
Cooling motor power 0.49kw
Hydraulic station motor power 4HP
Tool change system
Type of knifechange  servo turret
Number of knife positions 12刀位
Standard cylinder size 25X25mm
Standard boring bar diameter φ40mm
General Specifications
Power supply capacity 20KVA
Exterior dimensions (L x W X H) 2.2X2.3X2.8m
Net weight (approx) 7T

Servo Turret Lathe CNC Machine High Speed Cutting Vertical Lathe Machine 0

Servo Turret Lathe CNC Machine High Speed Cutting Vertical Lathe Machine 1
