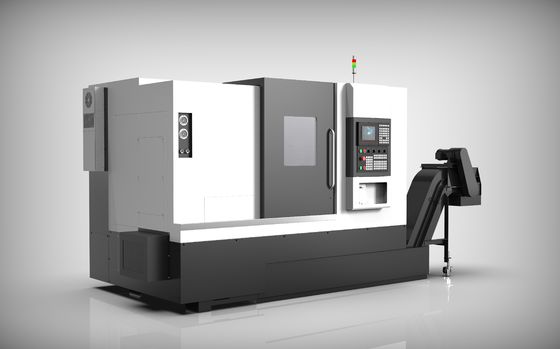

High Speed 5052L CNC Turning Center 5000 RPM Sub Spindle 12T Turret
  • Name
  • Name
  • Name
  • Name
  • Name

High Speed 5052L CNC Turning Center 5000 RPM Sub Spindle 12T Turret

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

cnc turn mill machine

,

cnc mill turn center

,

turnmill center

Product Description
SPECIFICATION
Project Project 5052L
Machine tool structure Bed frame High rigidity overall 30° step rail bed
Headstock Lay Flat
Chip removal method Back row or side row
chip conveyor Split back row or side drain tank
Internal guard method Stainless steel full protection
Processing  range Maximum turning diameter of bed ∅550mm
Maximum turning diameter of skateboard ∅380mm
Maximum machining diameter ∅320mm
Maximum machining length 500mm
Maximum rod material through hole diameter ∅52
Stroke and rapid traverse X-axis effective travel 230mm
Z-axis effective travel 570mm
X/Z axis fast movement rate 25m/min
 Recommended X and Z axis motors ≥15Nm
Spindle parameters Spindle nose models A2-6
Spindle through hole diameter ∅66mm
Maximum spindle speed 4500r/min
recommended spindle motor 11KW/15KW
Chuck and rotary cylinderspecifications 8" 10"  TK853  TK1075
Distance from spindle center toground 1075mm
Precision X,Z axis repeat accuracy ±0.005mm
x and Z axis positioning accuracy 0.003mm
Sub-spindle parameters Spindle model (electric spindle) A2-5
Spindle outside diameter ∅170mm
Spindle speed 5000r/min
Spindle through hole ∅56mm
Chuck dimensions 6"
Screw guide x axis rail specifications 45mm roller guide
Z axis rail specifications 45mm roller guide
X axis lead screw specifications 3210
Z axis lead screw specifications 4010
Lead screw bearings 2562 3062
Powered Y-axis turret Y-axis travel ±50mm
Rectangular hard rail plastic coating
Number of stations 12T
Applicable tool holder BMT55
Dimensions Length x width x height 2400x1215
 Net weight of lathe 3.6T

High Speed 5052L CNC Turning Center 5000 RPM Sub Spindle 12T Turret 0

High Speed 5052L CNC Turning Center 5000 RPM Sub Spindle 12T Turret 1

High Speed 5052L CNC Turning Center 5000 RPM Sub Spindle 12T Turret 2

High Speed 5052L CNC Turning Center 5000 RPM Sub Spindle 12T Turret 3

High Speed 5052L CNC Turning Center 5000 RPM Sub Spindle 12T Turret 4
