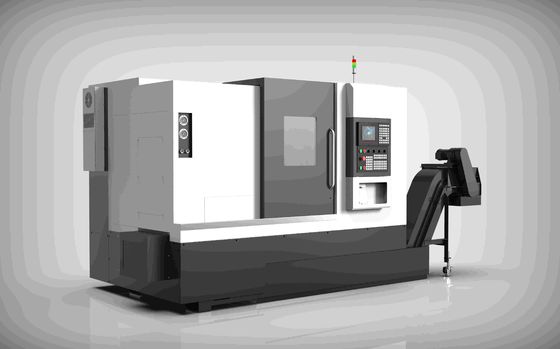

Compact 5030Y CNC Lathe With 350mm Machining Length ±50mm Y Axis
  • Name
  • Name
  • Name
  • Name
  • Name

Compact 5030Y CNC Lathe With 350mm Machining Length ±50mm Y Axis

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

CNC Turn Mill Machine

,

cnc turn mill center

,

cnc mill turn lathe

Product Description
Project 5030Y
Machine tool structure Bed frame High rigidity overall 30° step rail bed
Headstock Lay Flat
Chip removal method Back row or side row
chip conveyor Split back row or side drain tank
Internal guard method Stainless steel full protection
Processing  range Maximum turning diameter of bed ∅550mm
Maximum turning diameter of skateboard ∅380mm
Maximum machining diameter ∅320mm
Maximum machining length 350mm
Maximum rod material through hole diameter ∅52
Stroke and rapid traverse X-axis effective travel 230mm
Z-axis effective travel 350mm
X/Z axis fast movement rate 25m/min
Recommended X and Z axis motors ≥15Nm
Spindle parameters Spindle nose models A2-6
Spindle through hole diameter ∅66mm
Maximum spindle speed 4500r/min
recommended spindle motor 11KW/15KW
Chuck and rotary cylinder specifications 8" 10"  TK853  TK1075
Distance from spindle center to ground 1075mm
Precision X,Z axis repeat accuracy ±0.005mm
x and Z axis positioning accuracy 0.003mm
Screw guide x axis rail specifications 45mm roller guide
Z axis rail specifications 45mm roller guide
X axis lead screw specifications 3210
Z axis lead screw specifications 4010
Lead screw bearings 2562 3062
Powered Y-axis turret Y-axis travel ±50mm
Rectangular hard rail plastic coating
Number of stations 12T
Applicable tool holder BMT55
Dimensions Length x width x height 2400x1215
 Net weight of lathe 3.6T

Compact 5030Y CNC Lathe With 350mm Machining Length ±50mm Y Axis 0

Compact 5030Y CNC Lathe With 350mm Machining Length ±50mm Y Axis 1

Compact 5030Y CNC Lathe With 350mm Machining Length ±50mm Y Axis 2

Compact 5030Y CNC Lathe With 350mm Machining Length ±50mm Y Axis 3

Tags:

CNC Turn Mill Machine,

cnc mill turn center,

dual spindle lathe
