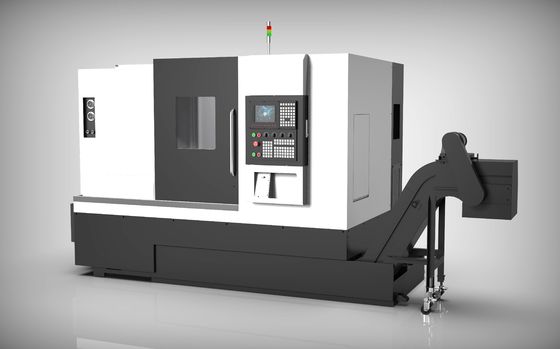

5810L Precision Multi Function CNC Lathe With Y Axis And Sub Spindle
  • Name
  • Name
  • Name
  • Name
  • Name

5810L Precision Multi Function CNC Lathe With Y Axis And Sub Spindle

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

precision cnc lathe

,

precision cnc machine lathe machine

Product Description
project HS-5810L
Machine tool structure bed frame High rigidity integral 15° stepped rail bed
headstock lay flat
chip removal method rear or side row
chip conveyor Rear chip removal tank integrated or side chip removal tank split
protection method Stainless steel full protection
Processing  range Maximum turning diameter of bed 600mm
Maximum swivel diameter of the slide 250mm
Maximum machining diameter 500mm
Maximum processing length 700mm
Maximum bar through hole diameter 75mm
Shaft machining diameter 250mm
Disc processing diameter 500mm
Stroke and rapid traverse X-axis effective travel 260mm
Z-axis effective travel 1000mm
X/Z axis rapid traverserate 30m/min
RecommendedX,Z axis motors 18NM
Spindle parameters Spindle nose model A2-8 A2-11
Spindle through hole diameter 86mm 105mm
Spindle maximum speed 3500r/min 2500r/min
Spindle motoris recommended 15KW 18KW
Chuck and Rotary Cylinder Specifications 10 inches 15 inches
Distance from spindle center to ground 1014mm
Precision X.Zaxis repeatability ±0.003mm
X,Zaxis positioning accuracy ±0.003mm
Sub-spindle parameters Spindle model A2-5
Spindle outer diameter 200mm
Spindle speed 4000r/min
Spindle through hole 55mm
Chuck size 6 inches
Screw guide X-axis railspecification 45mm roller guide
Z-axis rall specifications 45mm roller guide
X-axis screw specifications 4010
Z-axis screw specifications 4010
Screw bearing 3062
Powered Y-axis turret Y-axis travel ±50mm
Rectangular hard rail plastic coating
number of statlons 12T
Applicable tool holder BMT55
Dimensions LxWxH 3350x1350x1450
Light machine net weight 5T

5810L Precision Multi Function CNC Lathe With Y Axis And Sub Spindle 0

5810L Precision Multi Function CNC Lathe With Y Axis And Sub Spindle 1

5810L Precision Multi Function CNC Lathe With Y Axis And Sub Spindle 2

5810L Precision Multi Function CNC Lathe With Y Axis And Sub Spindle 3

5810L Precision Multi Function CNC Lathe With Y Axis And Sub Spindle 4
