12 Station Turret Lathe CNC Vertical Turning Machine With Grinding

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

Turret Lathe cnc vertical turning machine

,

12 Station cnc vertical turning machine

,

15000rmp cnc vtl

Product Description

VCM - 600 Efficient 12 - Station Turret CNC Lathe with Grinding



 Technical Parameters:
Item VCM-600
Processing ability
Maximum turing diameter on bed body ∅650mm
Maximum turning diameter ∅600mm
Maximum turninglength  600mm
Maximum grinding diameter  0600mm
Maximum outer grinding length  300mm
Maximum inner hole grinding length  300mm
Turning spindle
Nose end ofspindle  A2-8
Spindle chuck specifications  15"
Maximum spindle speed  0~2000rmp
Grinding spindle
Spindle model number  HSKA63
Maximum spindle speed  15000rmp
Spindle motor power  18KW
Feed shaft
X/Z axis travel  1000/600mm
X/Z axis fast displacement  24/24m/min
X/Z axis screw specifications  4010/4010
Positioning accuracy (JlS)  ±0.003/300
Repeated positioning accuracy (JiS)  ±0.003
Motor
Spindle motor power  15KW
X/Z axis motor torque  18N.m/28N.m
Cooling motor power  0.49kw
Hydraulic station motor power  4HP
Tool change system
Knife Change Type Servo hydraulic turret
Knife holder model  TCS100
Number of knife positions  12T
Standard knife cylinder size  25X25mm
Standard boring bar diameter  φ40mm
General Specifications
Power supply capacity  18KVA
Exterior dimensions (L X W X H)  3.2X2.2X2.5m
Net weight (approx)  7T

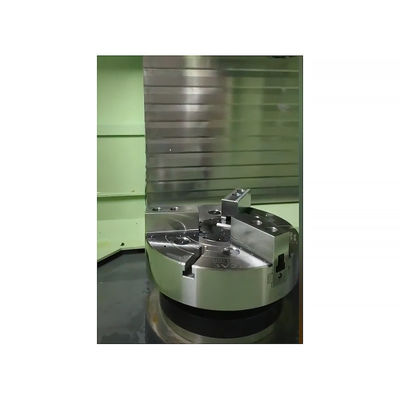

12 Station Turret Lathe CNC Vertical Turning Machine With Grinding 0

12 Station Turret Lathe CNC Vertical Turning Machine With Grinding 1
