Robust Powerful Turning And Grinding Machine With Servo Hydraulic Turret

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

Robust turning and grinding machine

,

Hydraulic Turret turning and grinding machine

,

15000rmp turning and grinding

Product Description

VCM - 1200 Robust And Powerful Turning And Grinding Machine With Servo Hydraulic Turret



 Technical Parameters:
Item VCM-1200
Processing ability
Maximum turing diameter on bed body ∅1250mm
Maximum turning diameter ∅1200mm
Maximum turninglength 800mm
Maximum grinding diameter 1200mm
Maximum outer grinding length 400mm
Maximum inner hole grinding length 400mm
Turning spindle
Nose end ofspindle A2-11
Spindle chuck specifications 21"
Maximum spindle speed 0~1500rmp
Grinding spindle
Spindle model number HSKA63
Maximum spindle speed 15000rmp
Spindle motor power 20KW
Feed shaft
X/Z axis travel 1200/800mm
X/Z axis fast displacement 24/24m/min
X/Z axis screw specifications 5010/5010
Positioning accuracy (JlS) ±0.003/300
Repeated positioning accuracy (JiS) ±0.003
Motor
Spindle motor power 30kw
X/Z axis motor torque 28N.m/28N.m
Cooling motor power 0.49kw
Hydraulic station motor power 4HP
Tool change system
Knife Change Type Servo hydraulic turret
Knife holder model TCS125
Number of knife positions 12T
Standard knife cylinder size 32X32mm
Standard boring bar diameter φ50mm
General Specifications
Power supply capacity 20KVA
Exterior dimensions (L X W X H) 4.2X2.3X3.5m
Net weight (approx) 12T

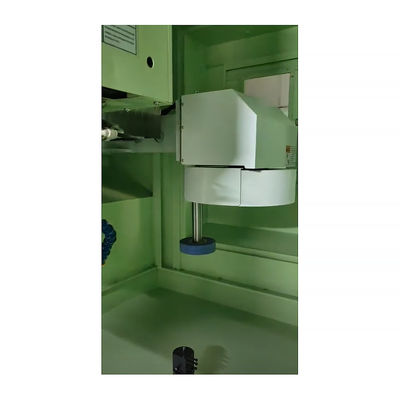

Robust Powerful Turning And Grinding Machine With Servo Hydraulic Turret 0

Robust Powerful Turning And Grinding Machine With Servo Hydraulic Turret 1
