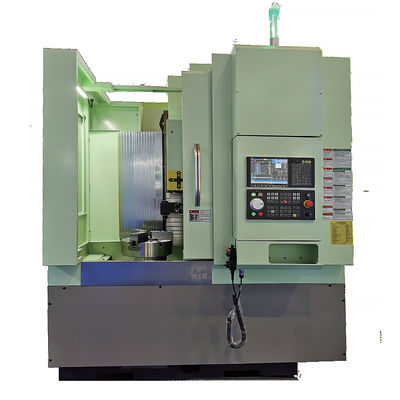

LV1200 Large - Scale High - Precision CNC Lathe

LV1200 Vertical CNC Lathe Product Introduction

Product Introduction

Product Features

1. Large Processing Capacity: With a maximum turning diameter on the bed body of ∅1200mm and the ability to handle workpieces weighing up to 1200kg, it can accommodate large - scale components.
2. High Precision: Boasting positioning accuracy of ±0.003/300 and repeated positioning accuracy of ±0.003 (JlS), it ensures precise machining of complex parts.
3. Powerful Spindle: Equipped with an A2 - 11 spindle nose end and a 30kW spindle motor, it provides high torque for efficient turning operations. The maximum spindle speed of 0 - 1500 rpm suits different materials and cutting requirements.
4. Efficient Feed System: The X/Z axis travel of 650/800mm and fast displacement of 24/24m/min, along with 5010/5010 screw specifications and 55 - pin roller rails, enable quick and smooth movement during machining.
5. Reliable Tool Change System: The 12 - station servo turret, along with standard cylinder size of 32×32mm and a φ50mm standard boring bar diameter, allows for efficient tool changes and a wide range of machining operations.

Product Uses

1. Aerospace Industry: Used for machining large - sized aircraft components such as engine casings and landing gear parts, where high precision and the ability to handle large workpieces are crucial.
2. Energy Sector: Ideal for manufacturing components for power generation equipment, like turbine shafts and generator housings, which require heavy - duty machining with tight tolerances.
3. Marine Industry: Suitable for producing large - scale ship components such as propeller shafts and engine blocks, ensuring the durability and precision needed for marine applications.
