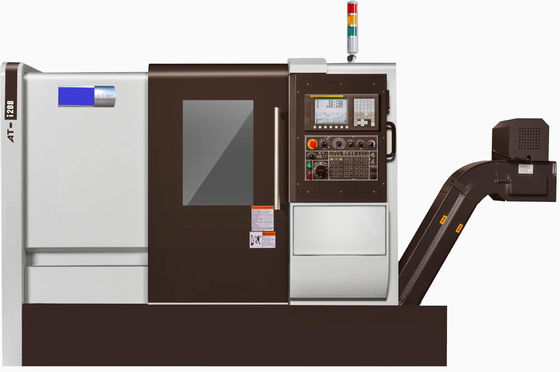

Dual Spindle Y Axis Turret CNC Turning Center Multi Function

Products

BMT Tool Holder

greatbrightlisa@gamil.com

15307691976

Contact Now

Dual Spindle Y Axis Turret CNC Turning Center Multi Function

MOQ:	1
Price:	negotiable
Standard Packaging:	Different packaging methods are adopted according to different modes of transport.
Payment Method:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

H.SON

Highlight:

Dual Spindle turret cnc turning center

Y Axis turret cnc turning center

Multi Function turret cnc turning center

Product Description

AT - 360MYC2 Dual - Spindle Y - Axis Turret Multi - function Turning Center

Machine tool technical parameter table:
CONTENT		Units	AT-360MYC2
Turret	Turret specifications	Model	TCSM
	Turret specifications	Model	Power turret
	Turret type/Number of tools	pcs	BMT55-12T
Travel	Maximum rotation diameter of the hod	mm	700
	Two centroid distance	mm	/
	ZProcessing length	mm	500
	Maximum machining diameter	mm	380
	Bar processing diameter	mm	75(92)
System configuration	FANUC	OI-TF	/
System configuration	Power tools motor	KW	3.7
Spindle	Oil pressure	Inch	10(12)
	Nose end	Type	A2-8
	Through hole diameter	mm	92(106)
	Bearing type	Type	NN3020
	Bearing diameter	mm	130(140)
	Spindle motor	KW	11-15(guangyu)
	Spindle speed	rpm	3000(2500)
Secondary spindle	Oilpressure	Inch	6寸
	Nose end	Type	A2-5
	Through hole diameter	mm	45
	Spindle motor	KW	7.5--11
	Spindle speed	rpm	4500
X-axis	Travel	mm	245
	Speed	m/min	20
	Servo motor	Kw	3.0
	Screw	mm	R32/P10
	Repeatability		0.003
Z-axis	Travel	mm	550
	Speed	m/min	20
	Servo motor	Kw	3.0
	Screw	mm	R40/P10
	Repeatability	mm	0.005
Y-axis	Travel	mm	100
	Speed	m/min	15
	Servo motor	Kw	3.0
	Screw	mm	R32/P10
	Repeatability	mm	0.005
B-axis	Travel	mm	550
	Speed	m/min	15
	Servo motor	Kw	3
	Screw	mm	R40/P10
	Repeatability	mm	±0.005
Tail seat	Control mode	Type	/
	Mandrel outer diameter	mm	/
	Morse taper	Type	/
X Track		Type	Hard track
Y Track		Type	Hard track
Z Track		Type	Hard track
Water tank capacity		Liter	220
Mechanical size	Floor area	cm	277x177
	Mechanica weight	kg	6900
	Packing size	cm	336x230x228

AT-360MYC2 Dual - Spindle Lathe

1. Product Introduction

The AT-360MYC2 is a high - end, dual...

帮我关于这款产品书写 产品介绍,产品特点,以及产品的用途,英文形式 保持简洁

AT-360MYC2 Dual-Spindle Machining Powerhouse

Product Introduction

The AT-360MYC2 is an advanced dual-spindle lathe, featuring a Y-axis integrated power turret. Engineered to meet the evolving demands of modern manufacturing, it streamlines production with enhanced functionality.

Product Features

1. Spindle Performance

Dual Spindles: Equipped with two spindles, enabling concurrent machining operations. The main spindle, powered by an 11 - 15 kW motor, reaches speeds up to 3000 (2500) rpm. The secondary spindle, with a 7.5 - 11 kW motor, spins at 4500 rpm.
Robust Build: Spindles have A2 - 8 and A2 - 5 nose ends, along with through - hole diameters of 92(106) mm and 45 mm respectively.

2. Precision Machining

Axis Accuracy: The X, Y, Z, and B axes feature hard tracks, ensuring stability. The X - axis repeats within 0.003 mm, while Y, Z, and B axes achieve 0.005 mm repeatability.
Power Turret: The BMT55 - 12T power turret with TCSM specifications offers versatility in tooling.

3. Processing Capacity

Travel Range: The bed allows a maximum rotation diameter of 700 mm. With a Z - axis processing length of 500 mm and Y - axis travel of 100 mm, it can handle diverse workpieces. The maximum machining diameter is 380 mm.

Product Applications

Automotive Manufacturing

Ideal for manufacturing complex automotive parts like engine blocks, transmission shafts, and differential components. The dual spindles and Y - axis turret allow for high - volume, precision production.

Aerospace Industry

Used to machine critical aerospace components such as turbine blades, aircraft landing gear parts, and engine casings, meeting the industry's strict tolerance requirements.

Precision Instrument Production

Enables the creation of high - precision parts for medical instruments, optical devices, and measuring equipment, thanks to its advanced machining capabilities.
