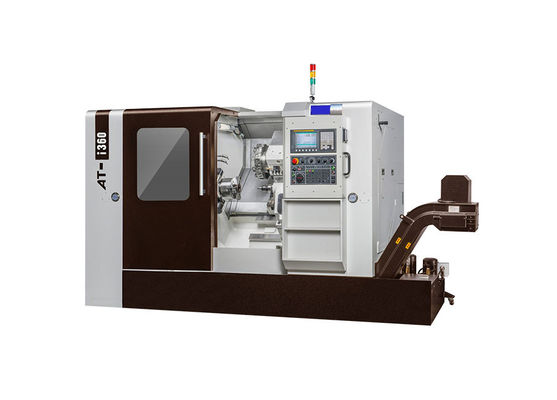

High Speed Lathe CNC Turn Mill Machine Dual Spindle Hard Rail

MOQ:	1
Price:	negotiable
Standard Packaging:	Different packaging methods are adopted according to different modes of transport.
Payment Method:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

H.SON

Highlight:

High Speed Lathe CNC Turn Mill Machine

Hard Rail CNC Turn Mill Machine

dual spindle cnc lathe

Product Description

AT-362MC2 Dual-Spindle Hard-Rail High-Speed Lathe

Machine tool technical parameter table:
Content		Units	AT-362MC2
Turret	Turret specifications	Model	Radial cutter
	Turret specifications	Model	Power turret
	Turret type/Number of tools	pcs	BMT65-12T
Travel	Maximum rotation diameter of the hod	mm	700
	Two centroid distance	mm	/
	MAX. Processing length	mm	1500
	Maximum machining diameter	mm	380
	Bar processing diameter	mm	75(92)
System configuration	FANUC	OI-TF	/
System configuration	Power tools motor	KW	3.7
Spindle	Oil pressure	Inch	10(12)
	Nose end	Type	A2-8
	Through hole diameter	mm	92(106)
	Bearing type	Type	NN3026(3028)
	Bearing diameter	mm	130(1400
	Spindle motor	KW	11-15(guangyu)
	Spindle speed	rpm	3000(2500)
Secondary spindle	Oilpressure	Inch	6寸
	Nose end	Type	A2-5
	Through hole diameter	mm	45
	Spindle motor	KW	7.5-11
	Spindle speed	rpm	4500
X-axis	Travel	mm	230
	Speed	m/min	20
	Servo motor	Kw	3.0
	Screw	mm	R32/P10
	Repeatability		0.002
Z-axis	Travel	mm	1500
	Speed	m/min	20
	Servo motor	Kw	3.0
	Screw	mm	R40/P10
	Repeatability	mm	0.008
Y-axis	Travel	mm	/
	Speed	m/min	/
	Servo motor	Kw	/
	Screw	mm	/
	Repeatability	mm	/
B-axis	Travel	mm	1500
	Speed	m/min	15
	Servo motor	Kw	/
	Screw	mm	R40/10
	Repeatability	mm	±0.005
Tail seat	Control mode	Type	/
	Mandrel outer diameter	mm	/
	Morse taper	Type	/
Track		Type	Hard track
Track		Type	Hard track
Track		Type	/
Water tank capacity		Liter	360
Mechanical size	Floor area	cm	405x177
	Mechanical weight	kg	7200
	Packing size	cm	455×230x228

AT-362MC2 Dual - Spindle Lathe

1. Product Introduction

The AT-362MC2 is an advanced dual - spindle lathe, designed to enhance productivity and precision in metal machining. Combining high - end components and intelligent control systems, it meets the diverse needs of modern manufacturing.

2. Product Features

Machining Power

Dual Spindles: The main spindle, powered by an 11 - 15 kW motor, reaches speeds of 3000 (2500) rpm. The secondary spindle, driven by a 7.5 - 11 kW motor, spins at 4500 rpm. This setup allows for concurrent machining, doubling productivity.
Power Turret: Equipped with a BMT55 - 12T radial cutter power turret, it provides 12 tool positions, enabling a wide range of machining operations.

Machining Capacity

Travel: The bed allows a maximum rotation diameter of 700 mm. With a Z - axis processing length of 1500 mm, it can handle long - shaft workpieces. The maximum machining diameter is 380 mm, and bar processing diameters range from 75 to 92 mm.

Precision

Axes: The X - axis travels 230 mm at 20 m/min with a repeatability of 0.002 mm. The Z - axis travels 1500 mm at 20 m/min, with a repeatability of 0.008 mm. The B - axis travels 1500 mm at 15 m/min, with a repeatability of ±0.005 mm.
Spindle: High - quality bearings (NN3026(3028)) ensure smooth and accurate spindle operation.

Configuration

System: Adopts the reliable FANUC 0I - TF system.
Tracks: Hard tracks on relevant axes enhance stability during machining.

3. Product Applications

Automotive Industry

Manufacture engine shafts, transmission gears, and axles with high precision and efficiency.

Aerospace Industry

Machine critical components like turbine shafts, compressor blades, and landing - gear parts.

Energy Sector

Create long - shaft components for oil and gas pipelines, as well as parts for wind turbines and generators.
