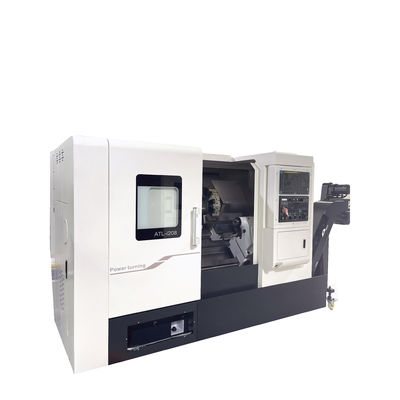

Dual Spindle CNC Turn Mill Machine Large Size High Efficiency Lathe
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

Dual Spindle CNC Turn Mill Machine Large Size High Efficiency Lathe

MOQ: 1
Price: negotiable
Standard Packaging: Different packaging methods are adopted according to different modes of transport.
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
H.SON
Highlight:

Dual Spindle CNC Turn Mill Machine

,

Large CNC Turn Mill Machine

,

cnc automatic lathe

Product Description

AT-363MC2 Dual-Spindle Large-Size High-Efficiency Lathe



Machine tool technical parameter table:
CONTENT Units AT-363MC2
Turret Turret specifications Model Radial cutter
Power  turret
Turret type/Number of tools pCS BMT65-12T
Travel Maximum rotation diameter of the
bed		 mm 700
Two centroid distance mm /
ZProcessing length mm 1900
Maximum machining diameter mm 380
Bar processing diameter mm 75(92)
System
configuration		 FANUC OI-TF /
Power tools motor KW 3.7
 Spindle Oil pressure Inch 10(12)
Nose end Type A2-8
Through hole diameter mm 92(106)
Bearing type Type NN3026(3028)
Bearing diameter mm 130(1400
Spindle motor KW 11-15(guangyu)
Spindle speed rpm 3000(2500)
Secondary
spindle		 Oilpressure Inch 6 inches
Nose end Type A2-5
Through hole diameter mm 45
Spindle motor KW 7.5--11
Spindle speed rpm 4500
X-axis Travel mm 230
Speed m/min 20
Servo motor Kw 3.0
Screw mm R32/P10
Repeatability   0.003
Z-axis Travel mm 1900
Speed m/min 20
Servo motor Kw 3.0
Screw mm R40/P10
Repeatability mm 0.01
Y-axis Travel mm /
Speed m/min /
Servo motor Kw /
Screw mm /
Repeatability mm /
B-axis Travel mm 1900
Speed m/min 15
Servo motor Kw 3
Screw mm R40/10
Repeatability mm ±0.005
Tail seat Control mode Type /
Mandrel outer diameter mm /
Morse taper Type /
X Track Type Hard track
Z Track Type Hard track
Y Track Type /
Water tank capacity Liter 400

Mechanical size		 Floor area cm 465x177
Mechanica weight kg 7800
Packing size cm 520x230×228

AT-363MC2 Dual-Spindle Lathe

Product Introduction

The AT-363MC2 is a cutting - edge dual - spindle lathe. Tailored for high - performance machining, it combines advanced technology with robust construction, delivering an all - round solution for diverse manufacturing needs.

Product Features

Dual-Spindle Power

  • Main Spindle: Equipped with an 11 - 15 kW motor, it rotates at 3000(2500) rpm. It has a 10(12)-inch oil pressure, A2 - 8 nose end, and a 92(106) mm through - hole diameter.
  • Secondary Spindle: Driven by a 7.5 - 11 kW motor, it spins at 4500 rpm. With a 6 - inch oil pressure, A2 - 5 nose end, and 45 mm through - hole diameter, it enables concurrent operations.

Machining Capacity

  • Turret: The BMT55 - 12T radial cutter power turret with 12 tool positions and a 3.7 kW power tools motor supports various machining tasks.
  • Travel: The maximum rotation diameter of the bed is 700 mm. The Z - axis and B - axis both travel 1900 mm, suitable for long - shaft workpieces. The maximum machining diameter is 380 mm, and bar processing diameters range from 75 to 92 mm.

Precision and Stability

  • Axes: The X - axis travels 230 mm at 20 m/min with a 0.003 mm repeatability. The Z - axis travels 1900 mm at 20 m/min with 0.01 mm repeatability. The B - axis travels 1900 mm at 15 m/min with ±0.005 mm repeatability.
  • Tracks: Hard tracks on the X and Z axes enhance stability during machining.

Control System

  • FANUC OI - TF: This reliable system ensures smooth operation and accurate control.

Product Applications

Automotive Manufacturing

Efficiently produce long - shaft automotive components like drive shafts and axles, meeting high - volume production requirements.

Aerospace Industry

Machine high - precision parts such as turbine shafts and landing - gear components, complying with strict industry standards.

Energy Sector

Create long - rod parts for oil and gas pipelines, and components for wind turbines, satisfying the demands of large - scale energy projects.
Tags:

CNC Turn Mill Machine,

cnc mill turn center,

dual spindle lathe
